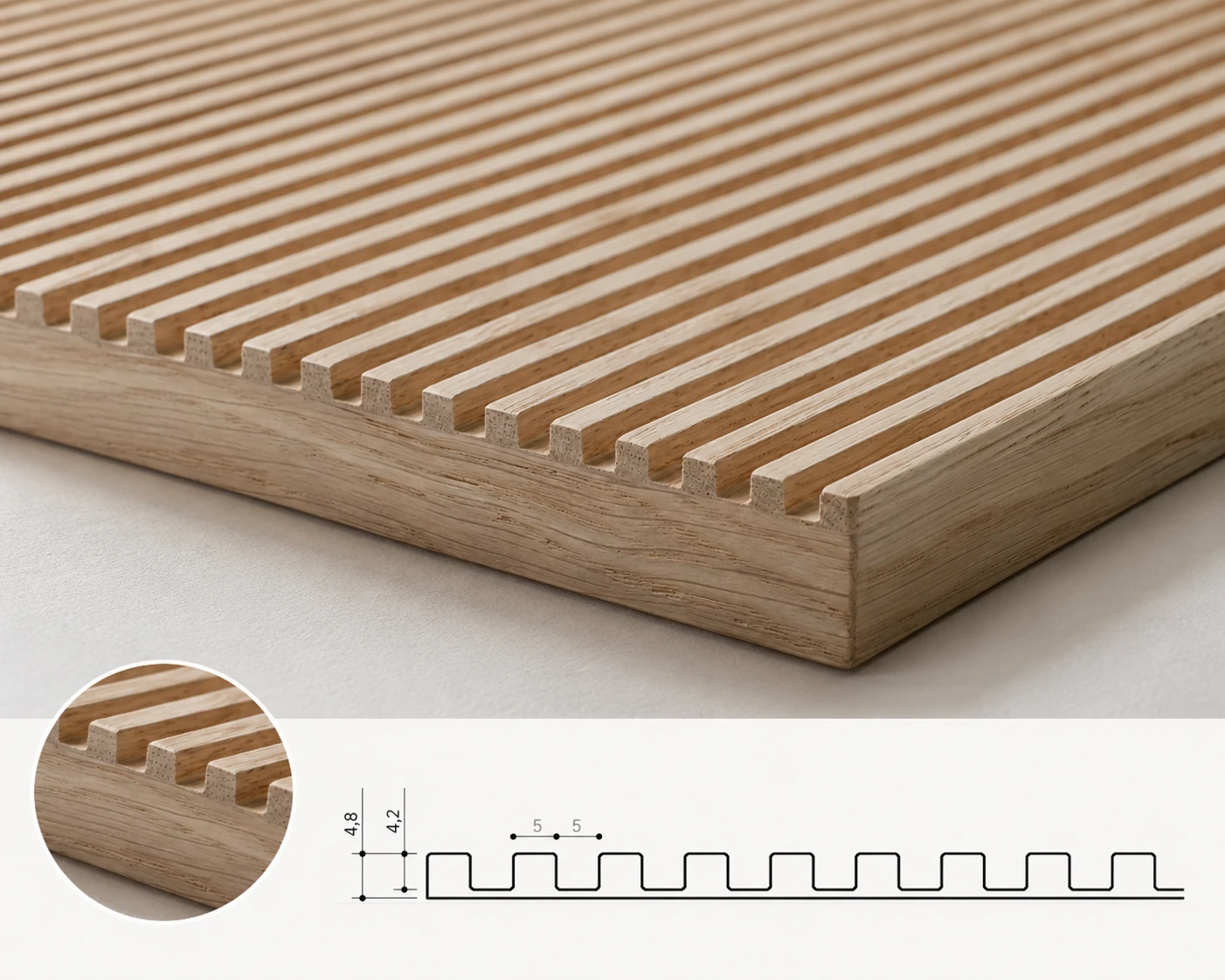

Profile drawings and terminology
Each named profile has a repeat, depth and cross-section character. Reference drawings support design development; manufacturing dimensions and revisions must be confirmed before fabrication.
Specification desk / Technical
Technical resources for fluted and reeded panels
A structured starting point for architects, interior designers and joinery manufacturers developing a profiled timber specification.
Direct answer / Specification summary
Technical specification begins with the profile drawing, supply format and finished dimensions, then defines timber, core material, total thickness, finish, edges, quantity, continuity and delivery. Verified project tolerances are confirmed on the approved quotation.
- Sheet options
- 2440 / 3050 × 1220 mm
- Face
- Nominal 4.8 mm profile layer
- Files
- PDF / project CAD by request
- Revision
- Verify before manufacture
Material + specification
What to know before you specify.
Standard sheet envelope
Typical full-sheet options are 2440 × 1220 mm and 3050 × 1220 mm with a nominal profiled face. Availability depends on timber, core material and construction. Cut components must remain within the approved manufacturing envelope.
Tolerances and dimensional responsibility
Do not infer finished tolerances from marketing drawings. Component size, core material, build-up, edge and process determine the relevant tolerance. Release drawings should identify critical interfaces and datum requirements.
Profile direction, centring and continuity
State whether the profile runs with length or width, whether it must centre on the finished face and whether it continues across adjacent pieces. Provide elevation drawings for matched assemblies.
Files and specification support
PDF references are available for profile comparison. DWG, DXF or project-specific data should be requested against the selected profile and revision so the design team works from verified information.
Project support / UK
Bring us the drawing.
We’ll help define the surface.
Share the application, dimensions, quantities and programme. We can guide profile, timber, construction, finish and supply format before quotation.
Start a project conversationSpecification FAQ
Questions,
answered precisely.
Concise guidance for professional design and joinery teams. Project-specific requirements are confirmed on the approved specification.
01Can I download CAD files?
Request the required profile and file format so the correct, current information can be issued.
02What total thicknesses are available?
The online configurator shows common options; final thickness depends on the selected face, core material and reverse construction.
03Are profile drawings suitable for manufacture?
Reference drawings support selection. Manufacture must use the verified project revision and approved specification.
04Who confirms installation and fixing?
The project designer or joinery manufacturer should design the complete assembly, fixings and interfaces for the intended location.
